Product Name
Australian Standard Link Chain
Product Material
Steel

1.Short pitch round link Chain

Product No. Chain Size Working Load Link
Dimension 		Links Per M Length Per 100KG

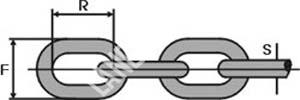

S R F
B.F
H.D.G
mm mt mm mm mm pc m m
MHAE022-ASL001 5 0.24 5 14.6 17.2 68.3 174 167
MHAE022-ASL002 6 0.32 6.3 18.9 21.5 52.9 114 108
MHAE022-ASL003 8 0.53 8.0 24.0 27.5 41.7 70.5 67.0
MHAE022-ASL004 10 0.83 10.0 29.5 33.5 33.9 45.2 42.9
MHAE022-ASL005 12 1.50 12.5 37.5 40.6 26.7 29.5 28.0
MHAE022-ASL006 13 1.60 13 38.8 44.6 25.8 26.9 26.3
MHAE022-ASL007 16 2.31 16 47.0 54.0 21.3 17.6 16.7
MHAE022-ASL008 20 3.45 20 59.2 68.5 16.9 11.3 11.1
MHAE022-ASL009 22 4.55 22 64.9 77.0 15.4 9.5 9.2
MHAE022-ASL010 24 5.43 24 71.0 82.2 14.1 7.8 7.6

2.Medium pitch round link Chain

Product No. Chain Size Working Load Link Dimension Links Per M Length Per 100KG
S R F
B.F
H.D.G
mm mt mm mm mm pc m m
MHAE022-ASL011 3 0.06 3.15 15.7 13.1 63.8 511 498
MHAE022-ASL012 4 0.11 4.00 18.6 16.0 53.9 320 305
MHAE022-ASL013 5 0.19 5.00 22.0 19.4 45.4 203 193
MHAE022-ASL014 6 0.32 6.30 26.1 23.5 37.8 129 120
MHAE022-ASL015 8 0.53 8.00 32.2 29.5 31.0 77.8 74.1
MHAE022-ASL016 10 0.83 10.0 39.1 36.2 25.0 48.5 47.1
MHAE022-ASL017 12 1.35 12.0 46.0 44.0 21.7 34 33.3
MHAE022-ASL018 13 1.50 13.0 49.1 46.1 20.3 29.7 27.7
MHAE022-ASL019 16 2.31 16.0 59.6 56.5 16.8 20.2 18.2
MHAE022-ASL020 20 3.67 20.0 73.3 70.0 13.6 12.3 11.6
MHAE022-ASL021 24 5.31 24.0 87.0 83.6 11.5 8.5 8.04

3.Long pitch round link Chain

Product No. Chain Size Working Load Link Dimension Links Per M Length Per 100KG
S R F
B.F
H.D.G
mm MT mm mm mm PC m m
MHAE022-ASL022 3 0.05 3.15 22.1 15.7 45.3 555 526
MHAE022-ASL023 4 0.09 4.00 25.4 18.6 39.3 345 323
MHAE022-ASL024 5 0.19 5.00 29.3 21.8 34.1 217.0 206.0
MHAE022-ASL025 6 0.32 6.30 34.5 26.1 29.0 135.0 128.0
MHAE022-ASL026 8 0.53 8.00 41.2 31.9 24.3 82.2 78.1
MHAE022-ASL027 10 0.83 10.00 49.0 38.7 20.4 52.9 50.2

4.Grade 70 Chain

Product No. Chain Size Link Dimension Weight
Per M		 Length
Per
500KG 		LENGTH
PER 500KG		 Breaking
Strength
S R F
mm mm mm mm kg mm mm kn
MHAE022-ASL028 6 6.0 18.9 22.05 0.80 625 62.5 44.1
MHAE022-ASL029 7 7.0 21.3 24.85 1.10 460 46.0 55.9
MHAE022-ASL030 7.3 7.3 24.0 26.6 1.16 430 43.0 58.9
MHAE022-ASL031 8 8.0 24.0 28.0 1.43 350 35.0 73.6
MHAE022-ASL032 10 10.0 30.0 35.0 2.23 225 22.5 118.0
MHAE022-ASL033 13 13.0 39.0 45.5 3.75 134 13.4 176.0

5.Grade L Chain

Product No. Chain Size
mm		 WLL
ton		 S
mm		 R
mm		 F
mm		 Links/
Meter		 Self Color
Meters/
100KG		 HD Galv
Meters/
100KG
5 0.25 5.0 14.6 17.2 68.3 174 167
MHAE022-ASL034 6 0.40 6.3 18.8 21.6 53.2 116 110
MHAE022-ASL035 8 0.64 8.0 23.8 27.0 42.0 71.4 69.9
MHAE022-ASL036 10 1.00 10.0 29.8 34.3 33.6 44.8 43.9
MHAE022-ASL037 13 1.70 13.0 38.8 44.6 25.8 28.9 26.3
MHAE022-ASL038 16 2.58 16.0 47.8 54.8 20.9 17.8 17.5
MHAE022-ASL039 20 4.03 20.0 59.2 68.5 16.9 11.3 11.1
MHAE022-ASL040 22 5.06 22.0 64.9 77.0 15.4 9.5 9.2
MHAE022-ASL041 24 5.61 24.0 71.0 82.2 14.1 7.8 7.6

Note:
This Australian standard link Chain is manufactured as per Australian standard.It is suitable for Australian market.And it also includes short pitch round link Chain,medium pitch round link Chain,long pitch round link Chain, Grade 70 Chain and Grade L Chain.
