Cutter Suction Dredger Equipment >> Cutting System >> Cutter Head >> Cutter Head With Cutting EdgesCutter Heads With Cutting Edges
dredge cutter head dredge cutter head

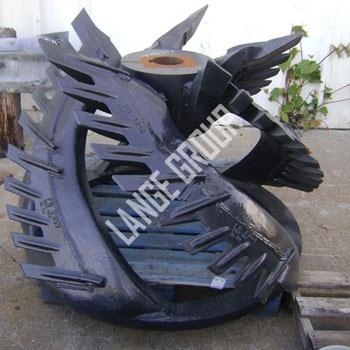

Cutter Heads With Cutting Edges
*Replaceable cutng edges are available in both plain and serrated form
*Refined cutting edge design
*Lower maintenance costs
*Material:30Mn-Mn13
Product No. Inner ring Dia. No.of blade Edge style Rotated speed
[mm] (rpm)
MDRE080-CH301 660 6 offset serrated 0-30
MDRE080-CH302 660 6 plain 0-30
MDRE080-CH303 800 6 offset serrated 0-30
MDRE080-CH304 800 6 plain 0-30
MDRE080-CH305 965 5 offset serrated 0-30
MDRE080-CH306 965 5 plain 0-30
MDRE080-CH307 965 6 offset serrated 0-30
MDRE080-CH308 965 6 plain 0-30
MDRE080-CH309 1090 6 offset serrated 0-30
MDRE080-CH310 1090 6 plain 0-30
We can also design the cutter head with cutting edges to the client's request.
