Marine Reel >> Storage Reel >> JIS Steel Wire Reel >> JIS F 3430-1980 Steel Wire Reel-A TypeJIS F 3430-1980 Vessel/Ship Steel Wire Storage Reel (A Serial)
|
| |||||

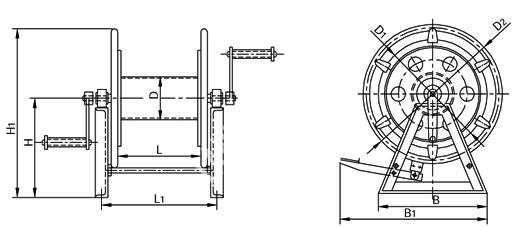

| Product Name | JIS F 3430-1980 Vessel/Ship Steel Wire Storage Reel (A Serial) | ||||
| Product No. | MOME206-A13 | MOME206-A17 | MOME206-A21 | MOME206-A26 | MOME206-A32 |
| D (mm) | 170 | 230 | 280 | 340 | 425 |
| D1 (mm) | 330 | 470 | 560 | 660 | 800 |
| D2 (mm) | 530 | 670 | 760 | 860 | 1000 |
| L (mm) | 350 | 450 | 500 | 550 | 650 |
| L1 (mm) | 528 | 628 | 700 | 750 | 850 |
| L2 (mm) | 584 | 684 | 770 | 820 | 920 |
| L3 (mm) | 1164 | 1282 | 1340 | 1425 | 1510 |
| B (mm) | 560 | 620 | 650 | 695 | 740 |
| B1 (mm) | 925 | 925 | 945 | 972 | 1024 |
| H (mm) | 420 | 495 | 535 | 610 | 665 |
| H1 (mm) | 685 | 830 | 915 | 1040 | 1165 |
| H2 (mm) | 670 | 745 | 875 | 950 | 1510 |
| Weight (kg) | 69 | 86 | 118 | 134 | 172 |
| Max Dia. Of Steel Wire (mm) | 13 | 17 | 20.5 | 26 | 32 |
| Max Length of Steel Wire(m) | 120 | 190 | 180 | 190 | 190 |
