Chain Slings >> Chain Sling >> Double Legs Chain Sling Loop >> Double Legs Chain Sling Loop-Adjustable Type
 |
 | ||||
|
Product Name |

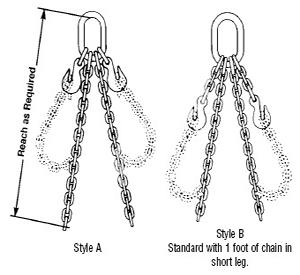

Double Legs Chain Sling Loop-Adjustable Type | ||||
|
Product Material |
Steel | ||||
| Product No. | Chain Size | Oblong Master Link | Working Load Limit | ||
| Nominal Size | Inside Dimension | ||||
| Material | Width | Length | 60＆#8226; | ||
| mm | mm | mm | mm | kg | |
| MHAE033-DC001 | 7 | 21 | 76 | 152 | 5100 |
| MHAE033-DC002 | 10 | 29 | 102 | 203 | 10300 |
| MHAE033-DC003 | 13 | 32 | 102 | 203 | 17700 |
| MHAE033-DC004 | 16 | 41 | 133 | 267 | 26600 |
| MHAE033-DC005 | 20 | 48 | 152 | 305 | 41600 |
| MHAE033-DC006 | 22 | 57 | 203 | 406 | 50250 |
| MHAE033-DC007 | 26 | 57 | 203 | 406 | 56900 |
| MHAE033-DC008 | 32 | 70 | 229 | 406 | 85200 |
