Marine Reel >> Storage Reel >> JIS F 3430-1980 Fiber Rope Storage Reel >> JIS F 3430-1980 Vessel/Ship Fiber Rope Storage Reel
|
| |||||
| Product Name | JIS F 3430-1980 Vessel/Ship Fiber Rope Storage Reel | ||||

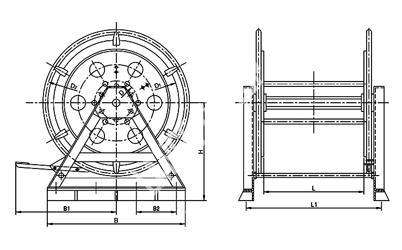

| Product No. | MOME206-F30 | MOME206-F34 | MOME206-F46 | MOME206-F54 | MOME206-F72 |
| D (mm) | 190 | 190 | 255 | 325 | 490 |
| D1 (mm) | 650 | 650 | 810 | 970 | 1330 |
| D2 (mm) | 820 | 820 | 980 | 1140 | 1500 |
| L (mm) | 750 | 860 | 930 | 930 | 920 |
| L1 (mm) | 930 | 1056 | 1126 | 1128 | 1132 |
| B (mm) | 650 | 650 | 820 | 980 | 1310 |
| B1 (mm) | 630 | 630 | 650 | 800 | 1030 |
| B2 (mm) | 190 | 190 | 185 | 225 | 246 |
| H (mm) | 520 | 520 | 575 | 655 | 830 |
| Weight (kg) | 85.1 | 89.1 | 122.5 | 145.3 | 216.1 |
| Max Dia. Of Fiber (mm) | 28/30 | 32/34 | 44/46 | 52/54 | 64/70/72 |
| Max Length of Steel Wire(m) | 140-220 | 160-220 | 180-220 | 190-220 | 200-220 |
