Sling Connectings >> Steel Wire Rope Sling Connectings >> Thimble >> Stainless Steel Thimbles DIN 6899B
Product Name
Stainless Steel Thimbles DIN 6899B
Product Material
Stainless Steel

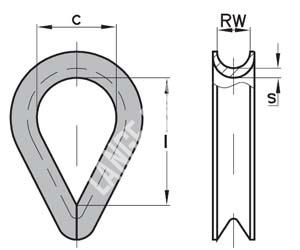

Product No. Dimensions/No. diameter Groove RW c l s Net weight
mm mm mm mm mm g
MHAE041-TD001 1 2 2 7.4 12 1 2
MHAE041-TD002 2 2,5 2,5 8 14 1 2
MHAE041-TD003 3 3 3 10 18 1 5
MHAE041-TD004 4 4 4 11 20 1 6
MHAE041-TD005 5 5 5 13 21 1 4
MHAE041-TD006 6 6 6 16 28 1,2 5.2
MHAE041-TD007 7 7 7 17 31 1.2 8
MHAE041-TD008 8 10 10 24 38 1.9 22.6

Note:
The DIN6899B stainless steel thimble is designed as a reinforcement for 2mm to 10 mm cable eyes. Simply loop the cable around the outer groove and secure With a ferrule or Wire rope grip.
