Marine Reel >> Storage Reel >> Electrical Steel Wire Reel >> Vessel/Ship Electrical Steel Wire Storage Reel (B Serial)
|
| ||
| Product Name | JIS F 3430-1980 Vessel/Ship Electrical Steel Wire Storage Reel (B Serial) | |
| Product No. | MOME206-EB26 | MOME206-EB32 |

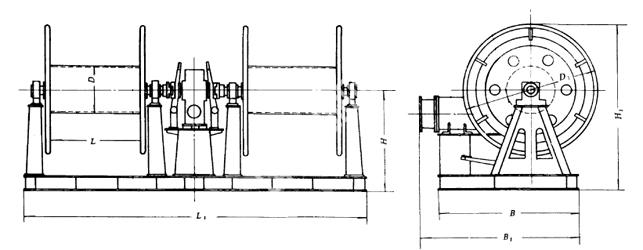

| D (mm) | 870 | 550 |
| D1 (mm) | 1120 | 970 |
| L (mm) | 550 | 1250 |
| L1 (mm) | 2340 | 2060 |
| B (mm) | 1120 | 1120 |
| B1 (mm) | 1360 | 1410 |
| H (mm) | 740 | 800 |
| H1 (mm) | 1175 | 1270 |
| Weight (kg) | 773 | 824 |
| Max Dia. Of Steel Wire(mm) | 26 | 32 |
| Max Length of Steel Wire(m) | 210 | 210 |
| Motor | JZ2-H-23-4/12 | JZ2-H-23-4/12 |
