Sling Connectings >> Steel Wire Rope Sling Connectings >> Thimble >> Galvanised Thimble DIN 6899B
Product Name

Galvanised Wire Rope Thimble DIN 6899B

Product Material

Galvanised Steel

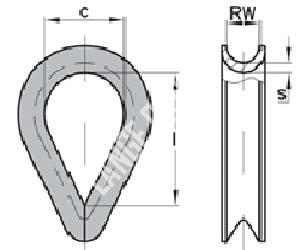

Product No. Dimensions/No. Diameter Groove RW c l s Net weight
mm mm mm mm mm g
MHAE041-TI001 1 6 6 16 28 1.2 16
MHAE041-TI002 2 7 7 17 31 1.2 19
MHAE041-TI003 3 8 8 19 33 1.2 30
MHAE041-TI004 4 10 10 24 38 1.9 47
MHAE041-TI005 5 12 12 28 45 3.2 72

Note:
The DIN 6899B electro plated thimble is designed as a reinforcement for 6mm to 12mm cable eyes. Simply loop the cable around the outer groove and secure With a ferrule or Wire rope grip.
