Marine Valves >> ASME/ANSI/API Marine Valves >> Gate Valves >> ANSI Class 150 Bronze Flange Gate ValveANSI Bronze Flanges Gate Valve-Class150
 |
 | ||||
| Bronze Gate Valve | |||||
| Standard | ANSI | ||||
| Pressure | Class150 | ||||

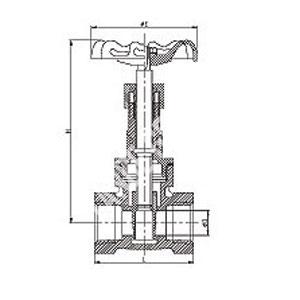

| Product No. | DN (inch) | D | L | H | E |
| MFVEZT1-AN011 | 1/4" | 10 | 44 | 82.5 | 54 |
| MFVEZT1-AN012 | 3/8" | 10 | 44 | 82.5 | 54 |
| MFVEZT1-AN013 | 1/2" | 12.7 | 51 | 93.5 | 54 |
| MFVEZT1-AN014 | 3/4" | 19.1 | 57 | 109 | 73 |
| MFVEZT1-AN015 | 1" | 25.4 | 63 | 124 | 73 |
| MFVEZT1-AN016 | 1 1/4" | 31.8 | 73 | 140 | 79.5 |
| MFVEZT1-AN017 | 1 1/2" | 38.1 | 76 | 154.5 | 97.5 |
| MFVEZT1-AN018 | 2" | 51 | 81 | 181.5 | 109 |
| MFVEZT1-AN019 | 2 1/2" | 63.5 | 100 | 211.5 | 130 |
| MFVEZT1-AN0120 | 3" | 76.5 | 108 | 238 | 130 |
