| Product Name | Electric Boom Reel | |||||
| Product No. | MOME207-EBR1 | MOME206-EBR2 | MOME206-EBR3 | MOME206-EBR4 | MOME206-EBR5 | MOME206-EBR6 |

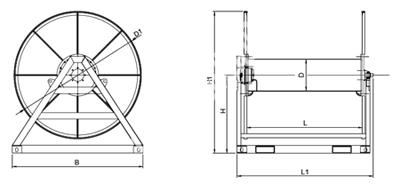

| D (mm) | 480 | 480 | 480 | 480 | 480 | 480 |
| D1 (mm) | 1830 | 1830 | 1830 | 2130 | 2130 | 2130 |
| L (mm) | 1830 | 2440 | 3050 | 2130 | 3050 | 4320 |
| L1 (mm) | 2490 | 3100 | 3710 | 2790 | 3710 | 3660 |
| B (mm) | 1830 | 1830 | 1830 | 2130 | 2130 | 2130 |
| H (mm) | 1325 | 1325 | 1325 | 1475 | 1475 | 1475 |
| H1 (mm) | 2240 | 2240 | 2240 | 2540 | 2540 | 2540 |
| Weight (kg) | 386 | 432 | 455 | 455 | 500 | 568 |
| Line Pull (kg) | 1500 | |||||
| Rotation Speed (rpm) | 0-15 | |||||
| Remarks: We can customize the dimension and the power system according to your requests. | ||||||
