Marine Valves >> ASME/ANSI/API Marine Valves >> Gate Valves >> API Class 150 Cast Iron Gate ValveAPI Cast Iron Gate Valve-Class150
 |
 | |||||||
| Cast Iron Gate Valve | ||||||||
| Standard | API 603 | |||||||
| Pressure | Class150-600 | |||||||

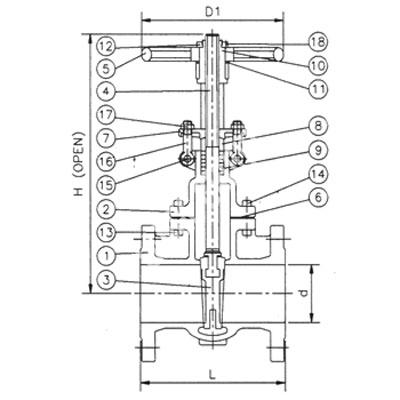

| Product No. | DN | L | D | D1 | D2 | n-d | H | |
| MFVEZK4-AN011 | 50 | 180 | 160 | 125 | 100 | 4-18 | 345 | |
| MFVEZK4-AN012 | 65 | 195 | 180 | 145 | 120 | 4-18 | 376 | |
| MFVEZK4-AN013 | 80 | 210 | 195 | 160 | 135 | 4-18 | 417 | |
| MFVEZK4-AN014 | 100 | 230 | 215 | 180 | 155 | 8-18 | 460 | |
| MFVEZK4-AN015 | 125 | 255 | 245 | 210 | 185 | 8-18 | 525 | |
| MFVEZK4-AN016 | 150 | 280 | 280 | 240 | 210 | 8-23 | 567 | |
| MFVEZK4-AN017 | 200 | 330 | 335 | 295 | 265 | 8-23 | 705 | |
| MFVEZK4-AN018 | 250 | 380 | 390 | 350 | 320 | 12-23 | 800 | |
| MFVEZK4-AN019 | 300 | 420 | 440 | 400 | 368 | 12-23 | 886 | |
| MFVEZK4-AN0120 | 350 | 450 | 500 | 460 | 428 | 16-23 | 968 | |
| MFVEZK4-AN0121 | 400 | 480 | 565 | 515 | 482 | 16-25 | 1090 | |
| MFVEZK4-AN0122 | 450 | 510 | 615 | 565 | 538 | 20-25 | 1175 | |
| MFVEZK4-AN0123 | 500 | 540 | 670 | 620 | 585 | 20-25 | 1414 | |
| MFVEZK4-AN0124 | 600 | 600 | 780 | 725 | 685 | 20-30 | 1593 | |
| MFVEZK4-AN0125 | 700 | 660 | 895 | 840 | 800 | 24-30 | 1812 | |
