Sling Connectings >> Steel Wire Rope Sling Connectings >> Grips >> Galvanized Grip (DIN 1142)
Product Name
Galvanized Wire Rope Grip (DIN 1142)

Product material

Galvanized Steel

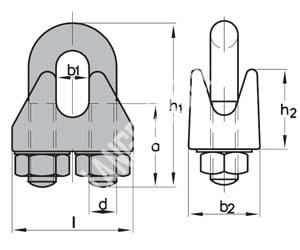

Product No. Dimensions Diameter a b1 b2 d h1 h2 L Net weight
mm mm mm mm mm mm mm mm g
MHAE041-GD001 Size 1 4 to 5 13 7 13 M5 25 13 25 21
MHAE041-GD002 Size2 6-6.5 17 8 16 M6 32 14 30 40
MHAE041-GD003 Size 3 8 20 10 20 M8 41 18 39 82
MHAE041-GD004 Size 4 10 24 12 20 M8 46 21 40 92

Note:
This galvanised Wire Rope Grips to EN 13411-5 are a simple way to form eyes in Wire rope diameters from 2.5mm to 10mm. These items are also known as Wire rope grips
