Marine Valves >> ASME/ANSI/API Marine Valves >> Angle Valves >> Class 150 Bronze Angle Globe ValveClass 150 Bronze Angle Globe Valve
 |
 | ||||||||
| Class 150 Bronze Angle Globe Valve | |||||||||

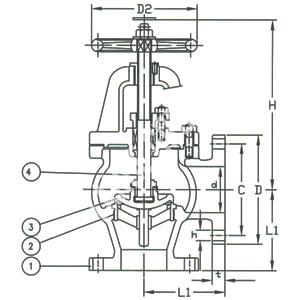

| Product No. | Size inch | d | D | C | L | t | H | W | n-h |
| MFVEJFT4-AN011 | 2 | 2 | 6 | 4.75 | 4 | 0.5 | 10.94 | 7.87 | 4-0.75 |
| MFVEJFT4-AN012 | 2.5 | 2.5 | 7 | 5.5 | 4.13 | 0.568 | 11.44 | 7.87 | 4-0.75 |
| MFVEJFT4-AN013 | 3 | 3 | 7.5 | 6 | 4.63 | 0.625 | 15.44 | 8.82 | 4-0.75 |
| MFVEJFT4-AN014 | 4 | 4 | 9 | 7.5 | 5.63 | 0.687 | 14 | 11 | 8-0.75 |
| MFVEJFT4-AN015 | 6 | 6 | 11 | 9.5 | 7.37 | 0.813 | 18 | 14 | 8-0.75 |
| MFVEJFT4-AN016 | 8 | 8 | 13.5 | 11.75 | 9.75 | 0.938 | 21.25 | 15.75 | 8-0.75 |
