Mechanical Dredger Components >> Bucket Chain Dredger Components >> Bucket Chain >> Dredge Bucket Chain
 |
 | |||
|

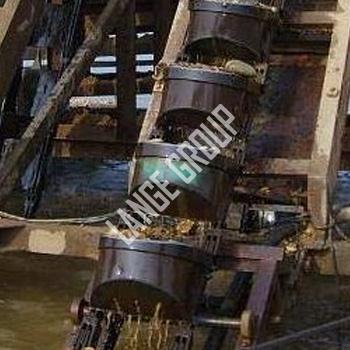

Dredge Bucket Chain | ||||
|
Product No. |
MDRE080-DB001 | |||
|
* Customized for use on Bucket Chain Dredger. | ||||
|
* High grade quality raw materials. | ||||
|
* Up to 2 cubic meters. | ||||
|
* Capacity range from 1 Ton to 6 Tons. | ||||
|
* Easy to operate and high in efficiency. | ||||
|
* High functionality and long service life. | ||||
|
Interval Bucket Chain | ||||
|
Product No. |
Buck Chain Breadth |
Base Width |
Distance Between Wheel |
DN |
|
MDRE080-DB101 |
545 |
400 |
315 |
40 |
|
MDRE080-DB102 |
630 |
462 |
355 |
50 |
|
MDRE080-DB103 |
750 |
550 |
400 |
61 |
|
MDRE080-DB104 |
850 |
650 |
475 |
61 |
|
MDRE080-DB105 |
1070 |
780 |
560 |
61 |
|
MDRE080-DB106 |
1250 |
920 |
630 |
71 |
|
MDRE080-DB107 |
1330 |
1030 |
710 |
95 |
|
MDRE080-DB108 |
1400 |
1080 |
750 |
95 |
|
MDRE080-DB109 |
1500 |
1120 |
800 |
112 |
|
MDRE080-DB110 |
1600 |
1180 |
900 |
124 |
|
Other specification are available upon request. | ||||
| 銆€ | ||||
|
Continuous Bucket Chain | ||||
|
Product No. |
Buck Chain Breadth |
Base Width |
Distance Between Wheel |
DN |
|
MDRE080-DB201 |
670 |
420 |
450 |
60 |
|
MDRE080-DB202 |
850 |
500 |
500 |
80 |
|
MDRE080-DB203 |
900 |
600 |
560 |
90 |
|
MDRE080-DB204 |
1060 |
680 |
670 |
90 |
|
MDRE080-DB205 |
1320 |
800 |
800 |
90 |
|
MDRE080-DB206 |
1500 |
950 |
900 |
110 |
|
MDRE080-DB207 |
1500 |
1050 |
1000 |
140 |
|
MDRE080-DB208 |
1700 |
1100 |
1060 |
140 |
|
MDRE080-DB209 |
1800 |
1200 |
1120 |
180 |
|
MDRE080-DB210 |
2000 |
1300 |
1260 |
180 |
|
Other specification are available upon request. | ||||
