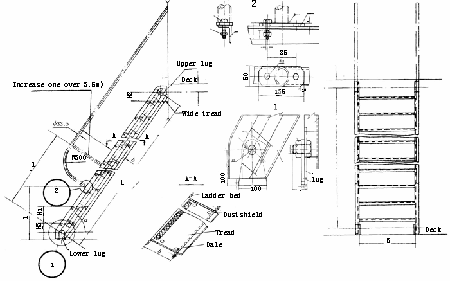

| Steel Inclined Ladder | |||
| Step | Non-Skid Serrated Steps / Burr-Punched Steps | ||
| Rung Style | Double Rung/Single Rung | ||
| Space Between Rungs | 300-350mm | ||
| Handrail | Optional Handrail for Requirements | ||
| Specification | |||
| Product No. | Angle | B | L |
| degree(s) | mm | mm | |
| MOUE040-SI001 | 45 | 700 | 283-4667 |
| MOUE040-SI002 | 800 | 283-4667 | |
| MOUE040-SI003 | 50,55,60 | 500 | 261-3916 |
| MOUE040-SI004 | 600 | 261-3916 | |
| MOUE040-SI005 | 700 | 261-3916 | |
| MOUE040-SI006 | 800 | 261-3916 | |
| MOUE040-SI007 | 65,70 | 400 | 331-3641 |
| MOUE040-SI008 | 500 | 331-3641 | |
| MOUE040-SI009 | 600 | 331-3641 | |
| Available in various sizes, please specify your requirement to us. | |||
