Sling Connectings >> Steel Wire Rope Sling Connectings >> Grips >> Galvanized Grip (DIN 741)
Product Name

Galvanized Wire Rope Grip (DIN 741)

Product Material
Galvanized Steel

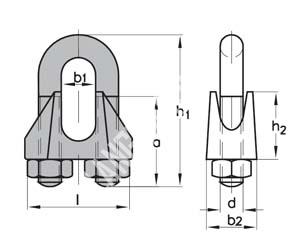

Product No. Dimensions Diameter a b1 b2 d h1 h2 L Net weight
mm mm mm mm mm mm mm mm g
MHAE041-GG001 Size 1 2.5-3 12 4 10 M4 20 10 21 11
MHAE041-GG002 Size 2 4 to 5 13 6 11 M5 24 10 23 15

Note:
This galvanised Wire Rope Grips to DIN 741 are a simple way to form eyes in Wire rope diameters from 2.5mm to 10mm. These items are also known as Wire rope grips
