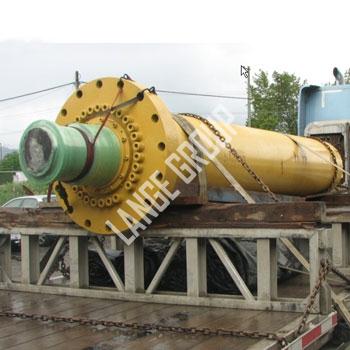

Product No.

MDRE080-HC001

*Diameter ranges from 250 to 1000mm

*Length ranges from 1000 to 16000mm

*Low pressure (8MPa), medium pressure (30MPa) and high pressure(70MPa)

*Used on spud carriers, backhoe dredger, gantries and hopper doors

Stroke and tolerance

Nominal stroke(mm)

Dimension tolerance(mm)

0-499

&plusm;1.5

500-1249

&plusm;2

1250-3149

&plusm;3

3150-8000

&plusm;5
