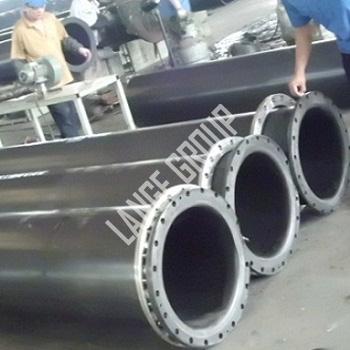

Cutter Suction Dredger Equipment >> Dredge Line System >> Dredging Pipe >> UHMWPE Dredging PipeUHMWPE Dredging Pipe
 |
 | ||||||
|
UHMWPE Ddreding Pipe | |||||||
|
Product No. |
MDEE080-UHMWPE | ||||||
|
Material: UHMWPE | |||||||
| O.D. | 0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa |
| DN(mm) | Thickness of Pipe[mm] | ||||||
| 140 | 銆€ | 銆€ | 6 | 7.7 | 9.5 | 11.8 | 14.6 |
| 160 | 銆€ | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 180 | 銆€ | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 219 | 銆€ | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 280 | 6.2 | 9.1 | 12 | 15 | 18.7 | 23.2 | 28.6 |
| 315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 |
| 350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 400 | 8.8 | 13 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | 銆€ |
| 500 | 11 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | 銆€ |
| 560 | 12.3 | 18.2 | 24.1 | 30 | 37.4 | 銆€ | 銆€ |
| 630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | 銆€ | 銆€ |
| 700 | 15.3 | 22.7 | 30.6 | 38.1 | 銆€ | 銆€ | 銆€ |
| 800 | 18 | 26 | 38.1 | 銆€ | 銆€ | 銆€ | 銆€ |
| 900 | 20 | 30 | 42.1 | 銆€ | 銆€ | 銆€ | 銆€ |
| 1000 | 22 | 33 | 銆€ | 銆€ | 銆€ | 銆€ | 銆€ |
