Cutter Suction Dredger Equipment >> Dredge Line System >> Dredging Pipe >> HDPE Dredging PipeHDPE Dredging Pipe
HDPE dredge pipe dredge HDPE pipe

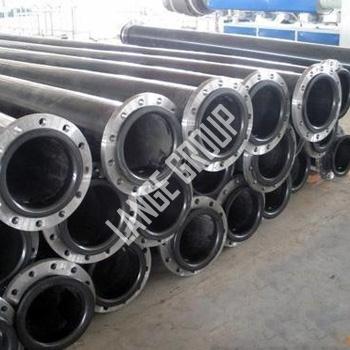

HDPE Dredging Pipe
Product No.
MDEE080-HDPE
Material: HDPE
Dia. of Pipe 0.4[Mpa] 0.6[Mpa] 0.8[Mpa] 1[Mpa] 1.25[Mpa] 1.6[Mpa]
DN[mm] Thickness of Pipe[mm]
140 5 6 7 8 10 13
160 7 7.5 8 10 12 15
180 7 7.5 9 11 13 17
200 7.5 8 10 12 15 18
225 7.5 9 11 13 17 21
250 8 10 12 15 18 23
280 9 11 13 17 21 25
315 10 12 15 19 23 29
350 12 14 17 21 26 32
400 12 15 19 24 29 36
425 13 15 20 25 33 42
450 14 17 21 27 34 45
500 15 19 23 30 37 48
560 17 21 26 33 41 51
630 19 24 30 37 46 57
710 21 27 33 42 52 銆€
800 24 30 38 47 58 銆€
850 26 32 40 50 銆€ 銆€
900 28 34 42 53 銆€ 銆€
950 30 36 45 56 銆€ 銆€
1000 31 38 47 59 銆€ 銆€
1050 32 40 49 61 銆€ 銆€
1100 33 42 51 63 銆€ 銆€
1150 35 44 53 66 銆€ 銆€
