Cutter Suction Dredger Equipment >> Dredge Line System >> Dredging Pipe >> SSAW Dredging PipeDredging SSAW Steel Pipe
 |
 |
|

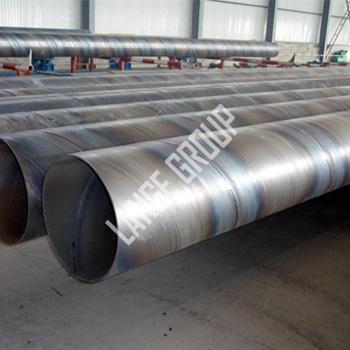

Dredging SSAW Steel Pipe | |
|
Product No. |
MDEE080-SSAW |
|
Material: Steel | |
|
Process |
Sprial Submerged-Arc Welded |
|
Type |
SSAW |
|
Standard |
API 5L,API 5CT,ASTM A53,ASTM A252,EN10217,EN10219,DIN,JIS,BS |
|
Certificate |
API 5L ISO CE |
|
Our diameter |
219.1mm-3040mm(8-120 inch) |
|
Wall Thickness |
5-30mm |
|
Length |
3-40m |
|
Steel Grade |
API 5L GR.B,X42,X46,X56,X65,X70 |
| 銆€ |
ASTM A53 GRADE A,GRADE B |
| 銆€ |
ASTM A252 GRADE 1,GRADE 2,GRADE 3 |
| 銆€ |
EN:S235JR,S235J0H,S235J2H,S275,S275JR,S355JRH,S355J2H |
|
Surface |
Fusion Bond Epoxy Coating,Coal Tar Epoxy,3PE,FBE,Varnish coating,Bitumen coating,Black Oil coating as per customers requirement |
|
Test |
Chemical Component Analysis,Mechanical Properties(Utimate Tensile Strength,Yield Strength,Elongation),Technical Properties(Flattening Test,Bending Test,Blow Test,Impact Test),Exterior Size Inspection,Hydrostatic Test.,X-ray test |
| 銆€ |
Mill Test Certificate:EN 10204/3.1B |
