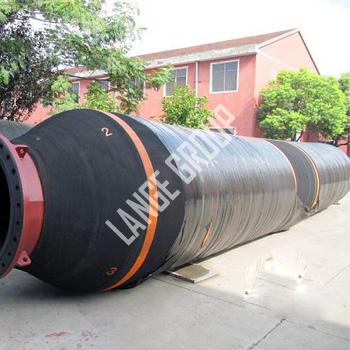

Self-floating Rubber Hose
Product No.
MDEE080-FH001
Main Material: Natural Rubber
Inside Diameter Working Presure Burst Presure Vacuum Presure Adhesive Strength Abrasion value Length Bending angle
mm Mpa Mpa Kpa KN/m cm3 m °
254 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
304 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
350 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
400 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
450 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
500 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
550 1.5 4.5 80 over 4 below 0.4 6-15 0°- 45°
600 2 6 80 over 4 below 0.4 6-15 0°- 45°
800 2 6 80 over 4 below 0.4 6-15 0°- 45°
850 2 6 80 over 4 below 0.4 6-15 0°- 45°
900 2 6 80 over 4 below 0.4 6-15 0°- 45°
1000 2 6 80 over 4 below 0.4 6-15 0°- 45°
1200 2 6 80 over 4 below 0.4 6-15 0°- 45°
1300 2 6 80 over 4 below 0.4 6-15 0°- 45°
NOTE: The parameter above are all for normal conditions, our factory can make all kinds of rubber hose products by your requirements.
