Product Name |
Steel Non-Opening Circle Window | ||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS, etc. | ||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||
|
Used for deck house, light watertight door and skylight | |||||||||
|
Designed according to GB3889 and JIS F2404 | |||||||||
|

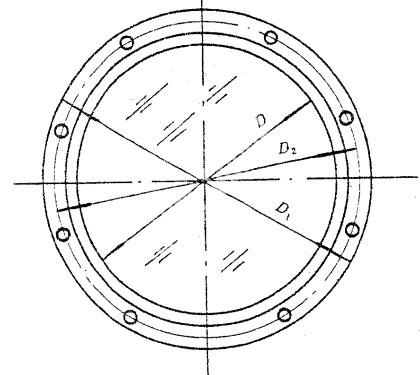

Specifications | |||||||||
| Product No. | Nominal Size | D1 | D2 | Bolt Number | Glass | Cutout Size | |||
| D | Diameter | Thickness | D | ||||||
| MOUE020-SC001 | 150 | 230 | 204 | 6 | 163 | 6 | 150 | ||
| MOUE020-SC002 | 200 | 280 | 254 | 8 | 213 | 8 | 200 | ||
| MOUE020-SC003 | 250 | 330 | 304 | 10 | 263 | 8 | 250 | ||
| MOUE020-SC004 | 300 | 380 | 354 | 10 | 316 | 8 | 300 | ||
| MOUE020-SC005 | 350 | 430 | 404 | 12 | 366 | 8 | 350 | ||
| MOUE020-SC006 | 400 | 480 | 454 | 12 | 416 | 10 | 400 | ||
