Marine Valves >> ASME/ANSI/API Marine Valves >> Globe Valves >> Class 150 Cast Steel Globe ValveCast Steel Globe Valve
 |
 | ||||
| Product Name | Class 150 Cast Steel Globe Valve | ||||

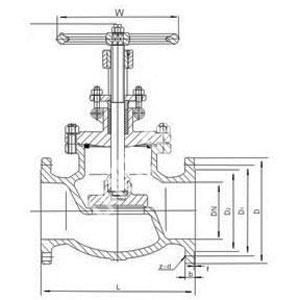

| Product No. | Size(inch) | L | L2 | H | K |
| MFVEJC4-AN011 | 2 | 203 | 216 | 330 | 200 |
| MFVEJC4-AN012 | 2 1/2 | 216 | 229 | 390 | 250 |
| MFVEJC4-AN013 | 3 | 241 | 254 | 410 | 250 |
| MFVEJC4-AN014 | 4 | 292 | 305 | 475 | 300 |
| MFVEJC4-AN015 | 5 | 356 | 368 | 540 | 350 |
| MFVEJC4-AN016 | 6 | 406 | 419 | 585 | 350 |
| MFVEJC4-AN017 | 8 | 495 | 508 | 725 | 450 |
| MFVEJC4-AN018 | 10 | 622 | 635 | 825 | 500 |
| MFVEJC4-AN019 | 12 | 698 | 711 | 940 | 600 |
| MFVEJC4-AN020 | 14 | 787 | 800 | 1200 | 600 |
| MFVEJC4-AN021 | 16 | 914 | 927 | 1270 | 650 |
| MFVEJC4-AN022 | 18 | 978 | 991 | 1300 | 650 |
