Marine Valves >> DIN Marine Valves >> Gate Valves >> PN16 Cast Steel Gate ValvePN16 Cast Steel Gate Valve

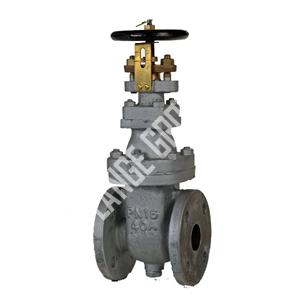

Product Name PN16 Cast Steel Gate Valve

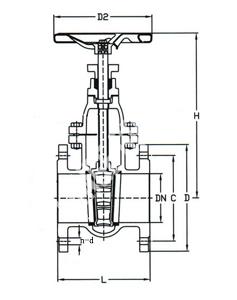

Product NO DN L D C n-d
MFVEZC4-DIN 01 40 140 150 110 4-18
MFVEZC4-DIN 02 50 150 165 125 4-18
MFVEZC4-DIN 03 65 170 185 145 4-18
MFVEZC4-DIN 04 80 180 200 160 8-18
MFVEZC4-DIN 05 100 190 220 180 8-18
MFVEZC4-DIN 06 125 200 250 210 8-18
MFVEZC4-DIN 07 150 210 285 240 8-22
MFVEZC4-DIN 08 175 220 315 270 8-22
MFVEZC4-DIN 09 200 230 340 295 12-22
MFVEZC4-DIN 10 250 250 405 355 12-25
MFVEZC4-DIN 11 300 270 460 410 12-26
MFVEZC4-DIN 12 350 290 520 470 16-26
MFVEZC4-DIN 13 400 310 580 525 16-30
