Marine Valves >> DIN Marine Valves >> Ball Valves >> PN16 Full Bore Ball Stainless Steel Body ValvePN 16 Full Bore Ball Stainless Steel Body Valve
 |
 | ||||
| Product Name | PN 16 Full Bore Ball Stainless Steel Body Valve | ||||

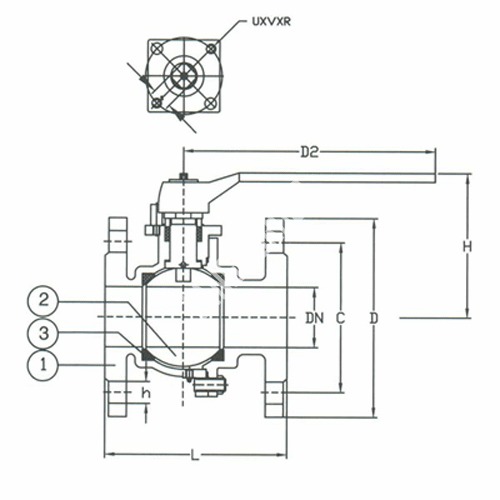

| Product NO | DN | L | D | C | n-d |
| MFVEQS4-DIN-01 | 15 | 115 | 95 | 65 | 4-14 |
| MFVEQS4-DIN-02 | 20 | 120 | 105 | 75 | 4-14 |
| MFVEQS4-DIN-03 | 25 | 125 | 115 | 85 | 4-14 |
| MFVEQS4-DIN-04 | 32 | 130 | 140 | 100 | 4-18 |
| MFVEQS4-DIN-05 | 40 | 140 | 150 | 110 | 4-18 |
| MFVEQS4-DIN-06 | 50 | 150 | 165 | 125 | 4-18 |
| MFVEQS4-DIN-07 | 65 | 170 | 185 | 145 | 8-18 |
| MFVEQS4-DIN-08 | 80 | 180 | 200 | 160 | 8-18 |
| MFVEQS4-DIN-09 | 100 | 190 | 220 | 180 | 8-18 |
| MFVEQS4-DIN-10 | 125 | 325 | 250 | 210 | 8-18 |
| MFVEQS4-DIN-11 | 150 | 350 | 285 | 240 | 8-22 |
