Marine Valves >> DIN Marine Valves >> Storm Valves >> PN10 Cast Steel Storm ValvePN10 Cast Steel Storm Valve
 |
 | ||||

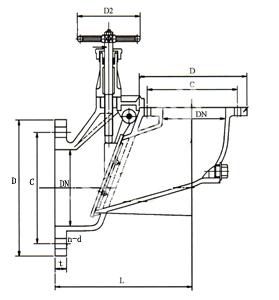

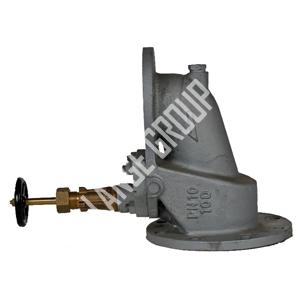

| PN 10 Cast Steel Storm Angle Pattern Valve | |||||
| Product No. | DN | L | D | C | n-d |
| MFVE FLC4-DIN-01 | 50 | 180 | 165 | 125 | 4-8 |
| MFVE FLC4-DIN-02 | 65 | 200 | 185 | 145 | 4-8 |
| MFVE FLC4-DIN-03 | 80 | 215 | 200 | 160 | 8-8 |
| MFVE FLC4-DIN-04 | 100 | 250 | 220 | 180 | 8-8 |
| MFVE FLC4-DIN-05 | 125 | 290 | 250 | 210 | 8-8 |
| MFVE FLC4-DIN-06 | 150 | 330 | 285 | 240 | 8-8 |
