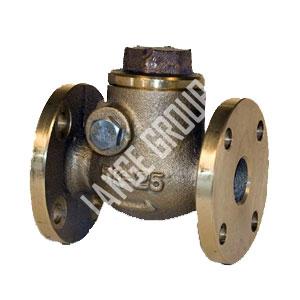

Marine Valves >> JIS Marine Valves >> Check Valves >> JIS F7371JIS F7371 5K Marine Bronze Swing Check Valve
 |
 | ||||||
| Product Name | JIS F7371 5K Marine Bronze Swing Check Valve | ||||||

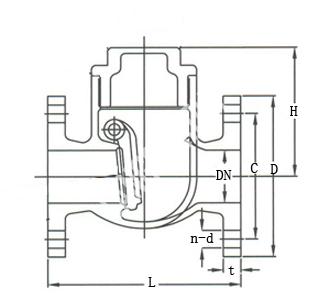

| Product No. | DN | L | D | C | n-d | t | H |
| MFVEHT4-JIS-01 | 15 | 100 | 80 | 60 | 4-12 | 10 | 69 |
| MFVEHT4-JIS-02 | 20 | 110 | 85 | 65 | 4-12 | 10 | 69 |
| MFVEHT4-JIS-03 | 25 | 110 | 95 | 75 | 4-12 | 10 | 69 |
| MFVEHT4-JIS-04 | 32 | 130 | 115 | 90 | 4-15 | 12 | 79 |
| MFVEHT4-JIS-05 | 40 | 140 | 120 | 95 | 4-15 | 12 | 93 |
