Marine Valves >> JIS Marine Valves >> Storm Valves >> JIS F3059JIS F3059 10K Cast Steel Vertical Storm Valve
 |
 | ||||||

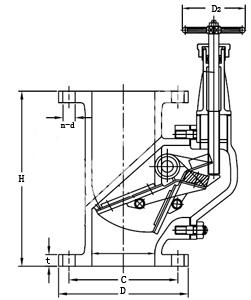

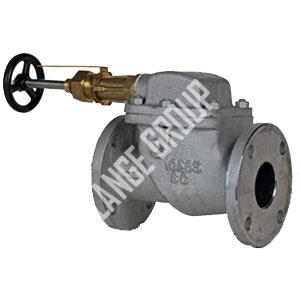

| JIS F3059 10K Cast Steel Vertical Storm Valve | |||||||
| Product N.o | DN | H | D | C | n-d | t | D2 |
| MFVEFLCF-JIS01 | 050 | 210 | 155 | 120 | 4-19 | 16 | 100 |
| MFVEFLCF-JIS02 | 065 | 240 | 175 | 140 | 4-19 | 18 | 100 |
| MFVEFLCF-JIS03 | 080 | 260 | 185 | 150 | 8-19 | 18 | 125 |
| MFVEFLCF-JIS04 | 100 | 280 | 210 | 175 | 8-19 | 18 | 125 |
| MFVEFLCF-JIS05 | 125 | 330 | 250 | 210 | 8-23 | 20 | 125 |
| MFVEFLCF-JIS06 | 150 | 360 | 280 | 240 | 8-23 | 22 | 125 |
| MFVEFLCF-JIS07 | 200 | 459 | 330 | 290 | 12-23 | 22 | 125 |
