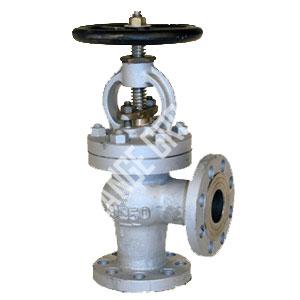

Marine Valves >> JIS Marine Valves >> Check Valves >> JIS F7474JIS F7474 20K Marine Cast Steel Screw Down Check Angle Valve
 |
 | |||||||
| Product Name | JIS F7474 20K Marine Cast Steel Screw Down Check Angle Valve | |||||||

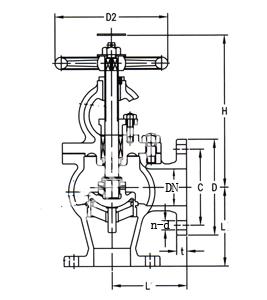

| Product N.o | DN | L | D | C | H | n-d | t | D2 |
| MFVEHCF JIS-01 | 32 | 100 | 135 | 100 | 270 | 4-19 | 18 | 160 |
| MFVEHCF JIS-02 | 40 | 110 | 140 | 105 | 290 | 4-19 | 18 | 160 |
| MFVEHCF JIS-03 | 50 | 125 | 155 | 120 | 305 | 8-19 | 18 | 200 |
| MFVEHCF JIS-04 | 65 | 135 | 175 | 140 | 345 | 8-19 | 20 | 224 |
| MFVEHCF JIS-05 | 80 | 150 | 200 | 160 | 385 | 8-23 | 22 | 250 |
| MFVEHCF JIS-06 | 100 | 170 | 225 | 185 | 440 | 8-23 | 24 | 280 |
| MFVEHCF JIS-07 | 125 | 200 | 270 | 225 | 500 | 8-25 | 26 | 315 |
| MFVEHCF JIS-08 | 150 | 225 | 305 | 260 | 550 | 12-25 | 28 | 355 |
| MFVEHCF JIS-09 | 200 | 280 | 350 | 305 | 630 | 12-25 | 30 | 455 |
| MFVEHCF JIS-10 | 250 | 310 | 430 | 380 | 725 | 12-27 | 34 | 560 |
