HZ Intergrated Communication System |
Product No.: MEIC201 |
The HZ intergrated communication system adopts digital exchange and microprocessor storage programe Control and other advanced technology.This system is added the public address communication function based on the automatic exchange function intergrated funtions of automatic exchange,commanding attemper,PA,G/A and talkback etc .This system is also specially made to keep safe and reliable operation under double backup configuration for main circuit cards and other technology. | |

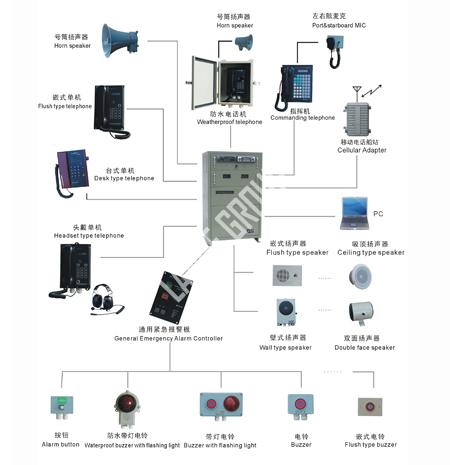

The system consists of exchange,user terminals and accessories.The user terminals include command telephone,telephones,loudspeakers,talk-back stations,ect.The terminal can be used as telephone,PA loudspeaker,alarm buzzer and PA remote Control station.The telephones,talk-back stations and speakers in this system all have their own numbers. | |
The user can select single group or several groups of loudspeakers to page.The call party can page through different area loudspeakers at the same time.There are 4 lines between exchange and telephones.2 lines are connected the telephone and the other 2 lines are connected loudspeaker.The number of telephone is the same as loudspeaker.And each group loudspeaker all have their own code.Grouping for loudspeaker is setting by software.The group loudspeaker includes rating voltage loudspeakers and telephone loudspeakers.The loudspeakers are set for 4 groups,i.e loud-hailing,outdoor,indoor,and machine area.The rating voltage dual power is 200-400W,which is used for loud-hailing,outdoor,engine room,passage,ect. | |
FEATURES: | |
Emergency paging with alarm interrupt |
G/A F/A alarm |
Loud hailing |
SSB,VHF monitor speaker follow me |
Automatic answer for paging |
Area broadcasting |
FM/AM receiver and CD ,MP3 player |
Cellular adapter(optional) |
Audio programms selectable and receivable |
Direct dial incoming |
Timing wake up |
Different priority and operating level |
Commanding call |
Dial by signal key(optional) |
VHF Wireless remote paging(optional) |
Busy Override |
Conference calls |
Talk back |
Call transfer |
Automatic telephone |
Free programming of commanding groups,loudspeaker groups and user priority |
