| HZ Intergrated Communication System | |
| Product No. | MMLE201 |
| The HZ intergrated communication system adopts digital exchange and microprocessor storage programe | |
| Control and other advanced technology.This system is added the public address communication function | |
| based on the automatic exchange function intergrated funtions of automatic exchange,commanding attemper, | |
| PA,G/A and talkback etc .This system is also specially made to keep safe and reliable operation under double | |
| backup configuration for main circuit cards and other technology. | |

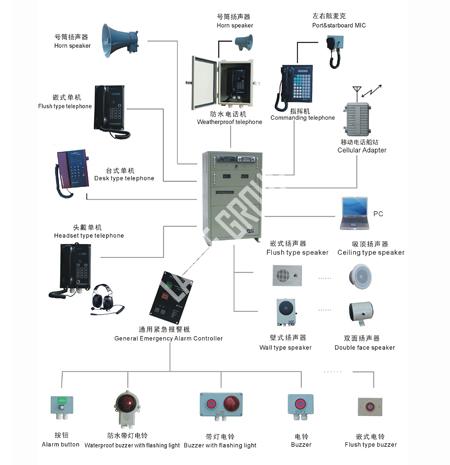

| The system consists of exchange,user terminals and accessories.The user terminals include command telephone,telephones, | |
| loudspeakers,talk-back stations,ect.The terminal can be used as telephone,PA loudspeaker,alarm buzzer and PA | |
| remote Control station.The telephones,talk-back stations and speakers in this system all have their own numbers. | |
| The user can select single group or several groups of loudspeakers to page.The call party can page through different | |
| area loudspeakers at the same time. | |
| There are 4 lines between exchange and telephones.2 lines are connected the telephone and the other 2 lines are connected loudspeaker. | |
| The number of telephone is the same as loudspeaker.And each group loudspeaker all have their own code. | |
| Grouping for loudspeaker is setting by software.The group loudspeaker includes rating voltage loudspeakers and telephone loudspeakers. | |
| The loudspeakers are set for 4 groups,i.e loud-hailing,outdoor,indoor,and machine area.The rating voltage dual power | |
| is 200-400W,which is used for loud-hailing,outdoor,engine room,passage,ect. | |
| FEATURES: | |
| Emergency paging with alarm interrupt | |
| G/A F/A alarm | |
| Loud hailing | |
| SSB,VHF monitor speaker follow me | |
| Automatic answer for paging | |
| Area broadcasting | |
| FM/AM receiver and CD ,MP3 player | |
| Cellular adapter(optional) | |
| Audio programms selectable and receivable | |
| Direct dial incoming | |
| Free programming of commanding groups,loudspeaker groups and user priority | |
| Different priority and operating level | |
| Commanding call | |
| Dial by signal key(optional) | |
| VHF Wireless remote paging(optional) | |
| Busy Override | |
| Conference calls | |
| Talk back | |
| Call transfer | |
| Automatic telephone | |
| Timing wake up | |
