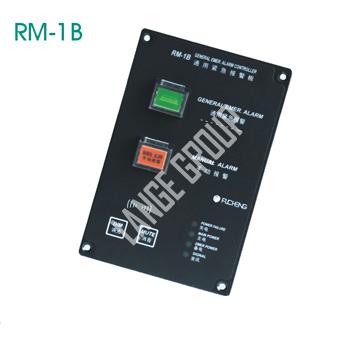

| RM-1B General Emergency Alarm System | ||||
| Product No:MEIC203 | ||||
| The RM-1B system is designed for the distribution of optical and acoustical alarm signalling of | ||||
| "General Alarm" The system complies with the latest CCS and SOLAS rules and regulations.The system | ||||
| can connect the PA system to make the alarm audio signal output through any of the speakers spread | ||||
| over the vessel.The general emergency alarm Controller adopts the large scale IC and microprocessor | ||||
| technology which can generate more alarm signals. | ||||
| The typical signals are as follows: | ||||
| G/A signal: 7 short pulses followed by a long pulse | ||||
| Manual alarm signal: output according to the switch on or off | ||||
| Fire alarm signal: continuous changing tone | ||||
| Abandon ship alarm signal: continous alternately a long and short pulse | ||||
| When the general emergency alarm Controller connects with the PA system,the PA speaker can sound | ||||
| differnet tone audio signal to distinguish from the different alarm. | ||||
| SPECIFICATIONS: | ||||
| Power supply: 24VDC +30%(-10%) 200mA (not including bell current) | ||||
| All inputs are normal open contacts without voltage. | ||||
| The contact capability is 250VAC/1.5A or 24VDC/1.5A | ||||
| Output contact capability is 250VAC/1.5A or 24VDC/1.5A | ||||
| Number | Model | Description | Weight | IP Class |
| 1 | RM-1B | General Emergency Alarm Controller | 1kg | IP20 |
| 2 | RM-1A | Alarm Remote Station | 2.3kg | IP56 |
| 3 | WYC-1 | Power Supply | 8kg | IP22 |
| 4 | WYC-1A | Power Supply | 8kg | IP22 |
| 5 | AN-6 | Alarm Button | 0.2kg | IP22 |
| 6 | DK-7 | Weatherproof Alarm Button | 0.6kg | IP56 |
| 7 | YLX120Z/J | Buzzer with Flashing Light 24VDC or 220VAC | 0.8kg | IP22 |
| 8 | YLX120PZ/J | Watertight Buzzer with Flashing Light 24VDC or 220VAC | 0.8kg | IP44 |
| 9 | YL120Z/J | Buzzer 24VDC or 220VAC | 0.5kg | IP22 |
| 10 | YL120PZ/J | Watertight Buzzer 24VDC or 220VAC | 0.5kg | IP44 |
| 11 | YLX120FZ/J | Weatherproof Buzzer with Flashing Light | 2kg | IP56 |
| 12 | FR-3Z/J | High-Power Siren | 2.5kg | IP56 |
| 13 | DWJ-2Z/J | Weatherproof High-Power Audible and Visual Alarm Unit | 2.9kg | IP56 |
| 14 | DBJ-1Z/J | Explosion-Proof Audible and Visual Alarm Unit | 6kg | IP56 |
