Marine Pipe Fitting >> Elbow >> Carbon Steel >> 45 Degree Long Elbow

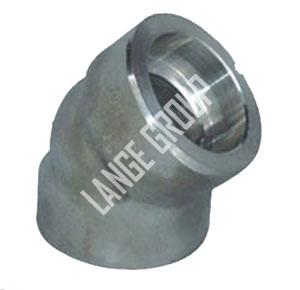

Product Name 45 Degree Long- Elbow
Product No. Nominal Pipe Size OD Wall Thickness(T) Center to End Weight(Kg)
A B Sch. Sch. Sch. Sch. H Sch. Sch. Sch. Sch.
5S 10S 20S 40S 5S 10S 20S 40S
MFVE602-LE001 15 ½ 21.7 1.65 2.1 2.5 2.8 15.8 0.02 0.03 0.04 0.04
MFVE602-LE002 20 ¾ 27.2 1.65 2.1 2.5 2.9 15.8 0.03 0.04 0.05 0.06
MFVE602-LE003 25 1 34 1.65 2.8 3 3.4 15.8 0.04 0.06 0.07 0.08
MFVE602-LE004 32 1¼ 42.7 1.65 2.8 3 3.6 19.7 0.06 0.1 0.11 0.13
MFVE602-LE005 40 1¼ 48.6 1.65 2.8 3 3.7 23.7 0.09 0.14 0.15 0.18
MFVE602-LE006 50 2 60.5 1.65 2.8 3.5 3.9 31.6 0.14 0.24 0.3 0.33
MFVE602-LE007 65 2½ 76.3 2.1 3 3.5 5.2 39.5 0.29 0.41 0.47 0.68
MFVE602-LE008 80 2 89.1 2.1 3 4 5.5 47.3 0.41 0.57 0.75 1.02
MFVE602-LE009 90 3½ 101.6 2.1 3 4 5.7 55.3 0.54 0.76 1.01 1.41
MFVE602-LE010 100 4 114.3 2.1 3 4 6 63.1 0.7 0.96 1.3 1.92
MFVE602-LE011 125 5 139.8 2.8 3.4 5 6.6 78.9 1.42 1.71 2.49 3.24
MFVE602-LE012 150 6 165.2 2.8 3.4 5 7.1 94.7 2.01 2.43 3.54 4.97
MFVE602-LE013 200 8 216.3 2.8 4 6.5 8.2 126.3 3.53 5.01 8.05 10.1
MFVE602-LE014 250 10 267.4 3.4 4 6.5 9.3 157.8 6.62 7.77 12.5 17.7
MFVE602-LE015 300 12 318.5 4 4.5 6.5 10.3 189.4 11.1 12.5 17.9 28.1
MFVE602-LE016 350 14 355.6 4 4.8 7.9 11.1 220.9 14.4 17.3 28.5 40
MFVE602-LE017 400 16 406.4 4.2 4.8 7.9 12.7 252.5 19.9 22.7 37.3 59
MFVE602-LE018 450 18 457.2 4.2 4.8 7.9 14.3 284.1 25.2 28.7 47.3 84.5
