Marine Valves >> DIN Marine Valves >> PN10 Cast Iron Gate Valve
Product Name PN10 Cast Iron Gate Valve

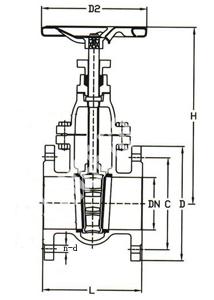

Product No. DN L D C n-d H
MFVEZK4-DIN01 40 140 150 110 4-18 230
MFVEZK4-DIN02 50 150 165 125 4-18 245
MFVEZK4-DIN03 65 170 185 145 4-18 290
MFVEZK4-DIN04 80 180 200 160 8-18 315
MFVEZK4-DIN05 100 190 220 180 8-18 355
MFVEZK4-DIN06 125 200 250 210 8-18 415
MFVEZK4-DIN07 150 210 285 240 8-22 460
MFVEZK4-DIN08 200 230 340 295 8-22 545
MFVEZK4-DIN09 250 250 395 350 12-22 635
MFVEZK4-DIN10 300 270 445 400 12-22 720
