Hydrophore >> Fresh Water Hydrophore >> Fresh Water Hydrophore
 |
 |
 |
 |
|
| Product Name | Fresh Water Hydrophore | |||
| Application | This series of hydrophore can be used to provide fresh water for living and cleaning of ship and drilling platforms. | |||
| Technical Data | ||||
| Product No. | Type | Capacity | Design pressure | Working pressure |
| M³ | Mpa | |||

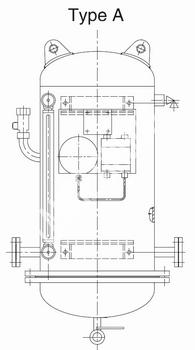

| MFWS203-FHA01 | A | 0.12 | 0.44 or 0.7 | 0.4 or 0.6 |
| MFWS203-FHA02 | 0.2 | |||
| MFWS203-FHA03 | 0.3 | |||

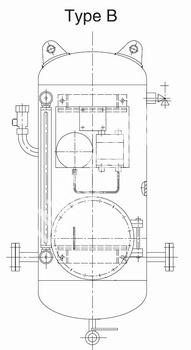

| MFWS203-FHB04 | B | 0.5 | ||
| MFWS203-FHB05 | 1 | |||

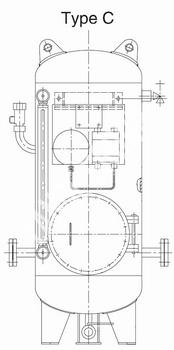

| MFWS203-FHC06 | C | 0.5 | ||
| MFWS203-FHC07 | 1 | |||
| MFWS203-FHC08 | 1.5 | |||
| MFWS203-FHC09 | 2 | |||
| MFWS203-FHC10 | 3 | |||
| Main Features | ||||
| 1.Compact | ||||
| 2.Easy to install and maintain | ||||
| Above techincal data are only for reference. We can redesign it according to your requests. For further details please contact us. | ||||
