Marine Valves >> JIS Marine Valves >> Globe Valves >> JIS F7307JIS F7307 10K Marine Cast Iron Globe Valve

Product Name	JIS F7307 10K Marine Cast Iron Globe Valve

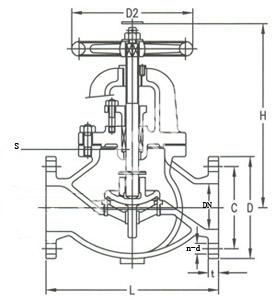

Product No	DN	L	D	C	n-d	t	H	D2	S
MFVEJC4-JIS011	50	220	155	120	4-19	20	285	160	110
MFVEJC4-JIS012	65	270	175	140	4-19	22	310	200	135
MFVEJC4-JIS013	80	300	185	150	8-19	22	320	200	160
MFVEJC4-JIS014	100	350	210	175	8-19	24	370	250	195
MFVEJC4-JIS015	125	420	250	210	8-23	24	420	280	240
MFVEJC4-JIS016	150	490	280	240	8-23	26	470	315	280
MFVEJC4-JIS017	200	570	330	290	12-23	26	555	355	365
MFVEJC4-JIS018	250	740	400	355	12-25	30	680	450	470
MFVEJC4-JIS019	300	840	445	400	16-25	32	770	500	550

* Applicable scope:The products are used for controlling the medium to open and close,preventing refluence in fuel oil piping,lucricating oil piping,water piping and steam piping at temperatures 205C or less.Dimensions of Flanges are according to JIS B2220 Flanges dimensions of Steel Pipe
* Available for us to all kinds of marine Valves,Flanges,Pipe,and other marine equipments
* All products available approved by ABS,BV,CCS,DNV,GL,LR,NK,etc., Certificated of Quality System ISO9001:2000
* Click to contact me for more technical details
