Marine Door >> Weathertight Door >> Quick-Acting Weathertight Door >> Lever-operated Quick-acting Weathertight DoorLever-Operated Quick-Acting Weathertight Door
 |
 | ||||||||||
|
Product Name |
Lever-Operated Quick-Acting Weathertight Door | ||||||||||
|
Description |
Manufactured according to IMO, SOLAS | ||||||||||
|
Designed according to ISO 6042-1980 requirements | |||||||||||
|
Single handle with toggle link for easy handling | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request. | |||||||||||
|
Material |
Steel / Aluminum | ||||||||||
|
Option |
Window | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

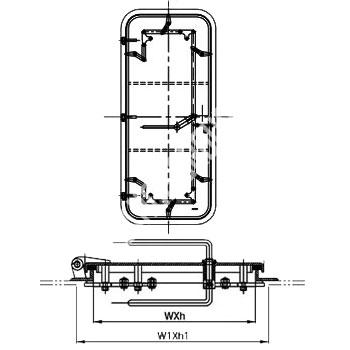

| Specifications | |||||||||||
| Product No. | Nominal Size | Cutout in Steel Wall | External Size | Leaf Thickness | |||||||
| W×H×R | W1×H1×R1 | W2×H2×R2 | T | ||||||||
| MOUE010-EL001 | 500×1000×R100 | 600×1100×R150 | 700×1200×R200 | 6,8 | |||||||
| MOUE010-EL002 | 600×1200×R100 | 700×1300×R150 | 800×1400×R200 | 6,8 | |||||||
| MOUE010-EL003 | 600×1400×R100 | 700×1500×R150 | 800×1600×R200 | 6,8 | |||||||
| MOUE010-EL004 | 600×1600×R100 | 700×1700×R150 | 800×1800×R200 | 6,8 | |||||||
| MOUE010-EL005 | 750×1400×R100 | 850×1500×R150 | 950×1600×R200 | 6,8 | |||||||
| MOUE010-EL006 | 750×1600×R100 | 850×1700×R150 | 950×1800×R200 | 6,8 | |||||||
| MOUE010-EL007 | 900×1400×R100 | 1000×1500×R150 | 1100×1600×R200 | 6,8 | |||||||
| MOUE010-EL008 | 900×1600×R100 | 1000×1700×R150 | 1100×1800×R200 | 6,8 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
