Manual Chain Hoist >> Chain Hoist Blocks >> Chain Hoist Block 0.5-5T >> Manual Chain Hoist Block 0.5-5 T
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Manual Chain Hoist Block 0.5-5 T | ||||||||||
| Product Material | Steel | ||||||||||

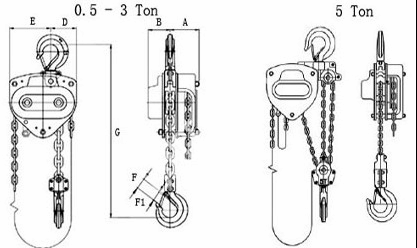

| Product No. | SWL | Dimensions (mm) | Load Chain | Mass (kg) (3 mtr) | |||||||
| A | B | D | E | F | F1 | G | Size (mm) | No. of Falls | |||
| MHAE061-CB001 | 500kg | 89 | 67 | 50 | 80 | 30 | 26 | 305 | 6.3 | 1 | 10.8 |
| MHAE061-CB002 | 1.0t | 89 | 67 | 53 | 87 | 33 | 28 | 340 | 6.3 | 1 | 12 |
| MHAE061-CB003 | 1.5t | 93 | 73 | 75 | 105 | 38 | 34 | 385 | 7.1 | 1 | 16.3 |
| MHAE061-CB004 | 2.0t | 98 | 77 | 85 | 115 | 43 | 38 | 420 | 8 | 1 | 20.6 |
| MHAE061-CB005 | 3.0t | 108 | 83.5 | 97.5 | 157.5 | 43 | 38 | 550 | 10 | 1 | 34 |
| MHAE061-CB006 | 5.0t | 98 | 77 | 120 | 210 | 57 | 52 | 575 | 8 | 3 | 39 |
