LH Type Controllable Pitch Propellers

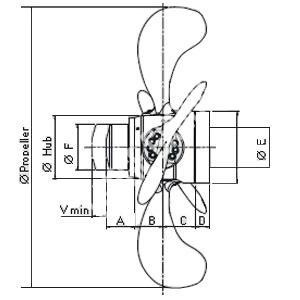

Product No. Type Propeller Dia. Hub Dia. A B C D E F Vmin.
Max. Min.
mm mm mm mm mm mm mm mm mm mm
MPPE312-LH001 LHCP425 1850 1300 425
MPPE312-LH002 LHCP480 2050 1400 480
MPPE312-LH003 LHCP515 2200 1500 515 193 190 217 107 488 311 70
MPPE312-LH004 LHCP560 2400 1600 560 208 207 236 118 530 341 70
MPPE312-LH005 LHCP600 2600 1750 600 210 221 253 105 580 365 70
MPPE312-LH006 LHCP680 2900 1950 680 256 250 287 119 650 414 90
MPPE312-LH007 LHCP760 3300 2150 760 290 280 322 160 720 463 90
MPPE312-LH008 LHCP850 3700 2450 850 323 314 359 177 806 517 100
MPPE312-LH009 LHCP960 4000 2750 960 341 355 405 200 910 584 110
MPPE312-LH010 LHCP1070 4500 3050 1070 389 394 451 210 1012 650 120
MPPE312-LH011 LHCP1200 5000 3450 1200 460 442 506 244 1136 730 160
MPPE312-LH012 LHCP1350 5700 3850 1350 576 500 570 300 1280 870 200
MPPE312-LH013 LHCP1500 6300 4280 1500 720 560 640 370 1425 1036 240

LH Controllable pitch (CP) propellers are the ideal choice for ships with frequent port calls as they provide excellent manoeuvrability, thus saving ship time and tug costs.
CP propellers guarantee superior propeller efficiency, reliability and minimum noise and vibration levels due to tailor-made designs with the latest available technology.
CP propellers are all of standard hub design, customized to suit the customer's needs by applying wake-adapted propeller designs and ship-construction-related shaft designs. Full power is available by automatic pitch adjustment and engine overload is avoided in all conditions.

Features include:

  • Compact, well proven, strong hub designs
  • Few components, robust design
  • Small overhang weight
  • Accurate stepless hydraulic pitch control
  • Reduced hydraulic power requirement
  • Easy to install, delivered as pre-assembled complete system
  • Under water replacement of blades
