Electric Chain Hoist >> 0.3Ton Hook Type >> 0.3Ton Hook type Electric Chain Hoist
 |
 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Product Name |
0.3ton Hook type Electric Chain Hoist | |||||||||||||
|
Product Material |
Steel | |||||||||||||
|
Product No. |
Capacity | Lifting speed | Lifting Motor | Operating Motor | Beam | |||||||||
| Power | Speed | Phase | Voltage | Frequency | Power | Speed | Speed | Phase | Voltage | Frequency | ||||
| T | M/min | Kw | R/min | V | Hz/s | Kw | R/min | M/min | V | Hz/s | mm | |||
|
MHAE0171-TH001 |
0.3 | 7.1 | 0.6 | 1440 | 3 | 380 | 50 | \ | \ | \ | \ | \ | \ | 50-102 |
|
MHAE0171-TH002 |
0.5 | 6.8 | 0.9 | 1440 | 3 | 380 | 50 | \ | \ | \ | \ | \ | \ | 50-102 |
|

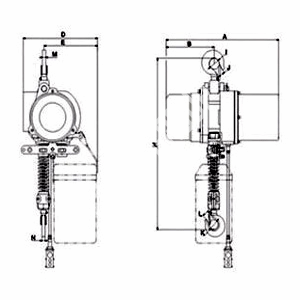

Dimension | ||||||||||||||
|
Product No. |
Capacity (T) | Unit (mm) | ||||||||||||
| H | A | B | D | E | I | J | K | L | M | N | Chain | |||
|
MHAE0171-TH001 |
0.3 | 600 | 415 | 168 | 290 | 195 | Φ34 | 28 | Φ34 | 28 | 19 | 19 | Φ6.1 | \ |
|
MHAE0171-TH002 |
0.5 | 600 | 415 | 168 | 290 | 195 | Φ34 | 28 | Φ34 | 28 | 19 | 19 | Φ6.3 | \ |
|
Note: | ||||||||||||||
