HS-Type Controllable Pitch Propellers

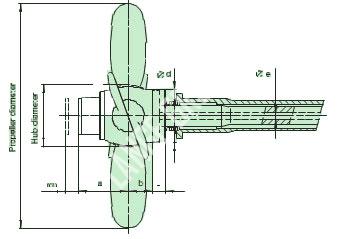

Product No. Type Hub Dia. a b c d e Vmin
MPPE312-HS001 HSCP-1095 1095 961 470 256 1014 115 260
MPPE312-HS002 HSCP-1190 1190 1043 502 272 1096 115 275
MPPE312-HS003 HSCP-1300 1300 1127 548 295 1201 130 295
MPPE312-HS004 HSCP-1415 1415 1225 589 314 1298 130 320
MPPE312-HS005 HSCP-1540 1540 1346 638 337 1415 160 345
MPPE312-HS006 HSCP-1680 1680 1466 686 362 1544 160 375
MPPE312-HS007 HSCP-1835 1835 1584 745 397 1679 160 400
MPPE312-HS008 HSCP-1915 1915 1650 777 412 1752 160 415
MPPE312-HS009 HSCP-2000 2000 1724 810 430 1825 190/160 435
Features

HS type contollable pitch propeller is servomotor in Hub,Oil supply unit in shaft.
Our controllable-pitch propellers are propulsion systems that can be used with almost any type of vessel. The power spectrum ranges from 600 kW to 30,000 kW, with propeller sizes varying between approximately 1.5 to 8.0 metres.
Advanced calculation methods allow the controllable-pitch propeller systems to be optimally adapted to the vessels' hull form, thereby maximizing efficiency and minimizing noise generation. The simple structure and the robust design keeps maintenance requirements to a minimum and ensures it a long service life.

Features include:

  • Compact, well proven, strong hub designs
  • Few components, robust design
  • Small overhang weight
  • Accurate stepless hydraulic pitch control
  • Reduced hydraulic power requirement
  • Easy to install, delivered as pre-assembled complete system
  • Under water replacement of blades
