HG-Type Coctrollable Pitch Propeller

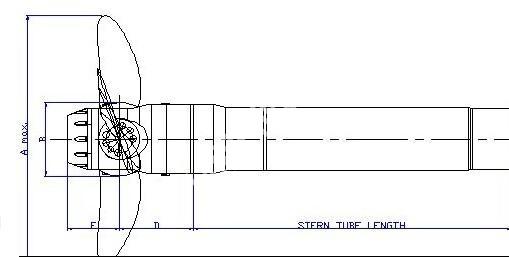

Product No. Type p/n(kw/rpm) Shaft Dia.Max. A B D E
MPPE312-HG001 HGCP-300 0.6 100 1350 300 392 108
MPPE312-HG002 HGCP-430 1.3 132 1850 430 518 303
MPPE312-HG003 HGCP-480 2.5 160 2160 480 547 369
MPPE312-HG004 HGCP-520 4.5 190 2340 520 587 360
MPPE312-HG005 HGCP-640 7.5 230 2880 640 664 460
MPPE312-HG006 HGCP-720 11 255 3240 720 780 550
MPPE312-HG007 HGCP-780 15 285 3600 780 780 550
MPPE312-HG008 HGCP-860 22 325 3930 860 942 761
MPPE312-HG009 HGCP-960 29.5 4385 960
MPPE312-HG010 HGCP-1070 42 4890 1090

HG type contollable pitch propeller is servomotor in Hub,Oil supply unit in front of gearbox.

Our controllable-pitch propellers are propulsion systems that can be used with almost any type of vessel. The power spectrum ranges from 600 kW to 30,000 kW, with propeller sizes varying between approximately 1.5 to 8.0 metres.
Advanced calculation methods allow the controllable-pitch propeller systems to be optimally adapted to the vessel锟斤拷s hull form, thereby maximizing efficiency and minimizing noise generation. The simple structure and the robust design keeps maintenance requirements to a minimum and ensures it a long service life.

Features include:

    Compact, well proven, strong hub designs

    Few components, robust design

    Small overhang weight

    Accurate stepless hydraulic pitch control

    Reduced hydraulic power requirement

    Easy to install, delivered as pre-assembled complete system

    Under water replacement of blades
