Electric Chain Hoist >> 7.5Ton With Motorized Trolley >> 1-7.5Ton Super low headroom Electric Chain Hoist
 |
 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name |
1-7.5ton Super low headroom Electric Chain Hoist | |||||||||||||
| Product Material |
Steel | |||||||||||||
| Product No. | Capacity | Lifting speed | Lifting Motor | Operating Motor | Beam | |||||||||
| Power | Speed | Phase | Voltage | Frequency | Power | Speed | Speed | Phase | Voltage | Frequency | ||||
| T | M/min | Kw | R/min | V | Hz/s | Kw | R/min | M/min | V | Hz/s | mm | |||
| MHAE0178-WM001 | 7.5 | 1.8 | 3.0 | 1440 | 3 | 380 | 50 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 100-178 |

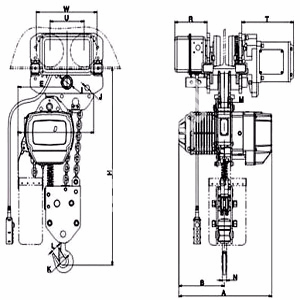

| Dimension | ||||||||||||||
| Product No. | Capacity (T) | Unit (mm) | ||||||||||||
| H | A | B | D | E | I | J | K | L | M | N | W | U | ||
| MHAE0178-WM001 | 7.5 | 1200 | 615 | 295 | 505 | 320 | Φ54 | Φ31 | Φ85 | 80 | 85 | 55 | 295 | 156 |
|
R: 142 T: 231 Chain: Φ11.2 | ||||||||||||||
|
Note: | ||||||||||||||
