Side Trusters | |||||||||
| Performance Table | |||||||||
| Product No. | Type | Prop.Diameter | Max.Thrust | Max.Input | Input RPM | Peopeller RPM | |||
| KN | ton | KW | 60Hz | 50Hz | 60Hz | 50Hz | |||
| MPPE315-SFT001 | LSFT300 | 300 | 2.9 | 0.3 | 21 | 2100 | 1576 | ||
| MPPE315-SFT002 | LSFT400 | 400 | 5.9 | 0.6 | 41 | 1760 | 1360 | ||
| MPPE315-SFT003 | LSFT500 | 500 | 9.8 | 1.0 | 68 | 1760 | 1100 | 997 | 994 |
| MPPE315-SFT004 | LSFT612 | 612 | 14.7 | 1.5 | 103 | 1760 | 1100 | 795 | 781 |
| MPPE315-SFT005 | LSFT740 | 740 | 19.6 | 2.0 | 131 | 1760 | 1100 | 644 | 642 |
| MPPE315-SFT006 | LSFT830 | 830 | 25.5 | 2.6 | 172 | 1760 | 1100 | 572 | 579 |
| MPPE315-SFT007 | LSFT950 | 950 | 34.3 | 3.5 | 234 | 1760 | 1100 | 508 | 508 |
| MPPE315-SFT008 | LSFT1150 | 1150 | 49.0 | 5.0 | 331 | 1760 | 1100 | 416 | 415 |
| MPPE315-SFT009 | LSFT1300 | 1300 | 63.7 | 6.5 | 435 | 1760 | 1100 | 388 | 374 |
| MPPE315-SFT010 | LSFT1450 | 1450 | 78.5 | 8.0 | 544 | 1760 | 1100 | 361 | 335 |

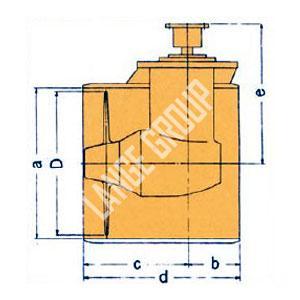

| Standard Dimension | ||||||||||
|
| ||||||||||
| Type | LSFT300 | LSFT400 | LSFT500 | LSFT612 | LSFT740 | LSFT830 | LSFT950 | LSFT1150 | LSFT1300 | LSFT1450 |
| D | 300 | 400 | 500 | 612 | 740 | 830 | 950 | 1150 | 1300 | 1450 |
| a | 336 | 448 | 556 | 625 | 755 | 846 | 969 | 1173 | 1326 | 1480 |
| b | 100 | 140 | 180 | 195 | 255 | 295 | 325 | 360 | 410 | 480 |
| c | 250 | 360 | 410 | 465 | 515 | 565 | 625 | 640 | 690 | 790 |
| d | 350 | 500 | 590 | 660 | 770 | 860 | 950 | 1000 | 1100 | 1270 |
| e | 320 | 490 | 593 | 615 | 700 | 760 | 855 | 975 | 1090 | 1227 |
| W.Kg | 110 | 290 | 500 | 550 | 800 | 1030 | 1420 | 1900 | 2600 | 3400 |
| LSFT Thrusters are Fixed Pitch Propeller thrusters.There are four features as follows: -Supurior Strength Tough and rational structural design has accomplished supurior strength,Especially strong ande durable driving shaft and seal are adopted for longer operation. -Less Noise and vibration Employing thicker duct plate,developing new propeller design and so on have achieved less noise and vibration which follow comfortable living environment on board -Easy Installation and Periodical Inspection LSFT is especially reduced duct lip and has a struture that it is able to weld anywhere on outer surface of duct for installation, On the periodical inspection,it is almost not needed to change parts except seal. -Various type of driving Compact new control system can provide easy operation.Customer can choose various configuration of prime mover,electric motor,diesel engine or hydraulic motor.LSFT Thrusters would be installed under following conditions:-Height from the base line:1-1.5D -Depth from light loaded draft line:1-1.5D -Length of tunnel:2D -Height of gravity tank:1.5-2meter above full loaded draft line. -Roundness of hull openning for tunnel:0.05D (D:Propeller Diameter ,Base:Centre of propeller) | ||||||||||
