| Product Name |

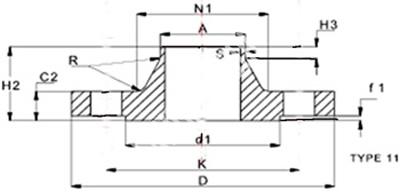

BS Weld Neck Flanges (mm) |
| Product NO. |
DN |
D |
C2 |
H2 |
H3 |
R |
A |
N1 |
Raised face |
S |
| d1 |
f1 |
| MFVE603-BS01 |
10 |
90 |
14 |
35 |
6 |
4 |
17.2 |
28 |
40 |
2 |
1.8 |
| MFVE603-BS02 |
15 |
95 |
14 |
35 |
6 |
4 |
21.3 |
32 |
45 |
2 |
2.0 |
| MFVE603-BS03 |
20 |
105 |
14 |
38 |
6 |
4 |
26.9 |
39 |
58 |
2 |
2.3 |
| MFVE603-BS04 |
25 |
115 |
16 |
38 |
6 |
4 |
33.7 |
46 |
68 |
2 |
2.6 |
| MFVE603-BS05 |
32 |
140 |
16 |
40 |
6 |
6 |
42.4 |
56 |
78 |
2 |
2.6 |
| MFVE603-BS06 |
40 |
150 |
16 |
42 |
7 |
6 |
48.3 |
64 |
88 |
2 |
2.6 |
| MFVE603-BS07 |
50 |
165 |
20 |
48 |
8 |
6 |
60.3 |
75 |
102 |
2 |
2.9 |
| MFVE603-BS08 |
65 |
185 |
22 |
52 |
10 |
6 |
76.1 |
90 |
122 |
2 |
2.9 |
| MFVE603-BS09 |
80 |
200 |
24 |
58 |
12 |
8 |
88.9 |
105 |
138 |
2 |
3.2 |
| * Click here to contact me for more technical details |
