| Product Name |
BS 10 Plate Flanges |
| Product NO. |

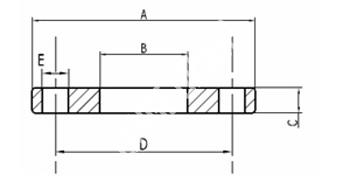

Size |
A |
B |
C |
D |
E |
NO.of Bolts |
| MFVE604-BS01 |
1/2" |
95 |
22 |
4.8 |
66.7 |
12.7 |
4 |
| MFVE604-BS02 |
3/4" |
102 |
27.7 |
4.8 |
73 |
12.7 |
4 |
| MFVE604-BS03 |
1" |
114 |
34.5 |
4.8 |
82.6 |
12.7 |
4 |
| MFVE604-BS04 |
1 1/4" |
121 |
43.2 |
6.4 |
87.3 |
12.7 |
4 |
| MFVE604-BS05 |
1 1/2" |
133 |
49.5 |
6.4 |
98.4 |
15.9 |
4 |
| MFVE604-BS06 |
3" |
152 |
62 |
7.9 |
114.3 |
15.9 |
4 |
| MFVE604-BS07 |
3 1/2 |
165 |
74.7 |
7.9 |
127 |
15.9 |
4 |
| MFVE604-BS08 |
4 |
184 |
90.7 |
9.5 |
146 |
15.9 |
4 |
| MFVE604-BS09 |
5 |
203 |
103.4 |
9.5 |
165.1 |
15.9 |
4 |
