Wire Rope Blocks >> Eye Head Snatch Block
Product Name Eye Head Snatch Block
Product Material Steel

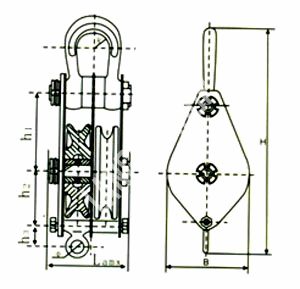

Product No. Capacity Test Load Dimension of Body Rope Dia. Dimension of Hook Weight
H H1 B L max Suit. Max D 0 R1
Ton Kn mm mm mm mm mm mm mm mm mm kg
Single Wheel
MHAE072-ES001 1 16 240 - 116 64 - - - - - 3.25
MHAE072-ES002 2 32 650 - 152 77 - - - - - 5.35
MHAE072-ES003 3.2 51.2 430 - 176 90 - - - - - 9.42
MHAE072-ES004 5 80 520 - 212 106 - - - - - 16.04
MHAE072-ES005 8 128 655 - 280 125 - - - - - 30.10
MHAE072-ES006 10 160 735 - 316 144 - - - - - 49.98
Double Wheels
MHAE072-ES007 1 16 245 - 98 78 6.2 7.7 - - - 3.05
MHAE072-ES008 2 32 316 - 116 94 7.7 11 - - - 5.96
MHAE072-ES009 3.2 51.20 400 - 152 112 11 14 - - - 10
MHAE072-ES010 5 80 490 - 176 132 12.5 15.5 - - - 15.90
MHAE072-ES011 8 128 590 - 212 163 15.5 18.5 - - - 30.1
MHAE072-ES012 10 160 675 - 236 169 17 20 - - - 41
MHAE072-ES013 16 224 805 - 316 214 23 2405 - - - 82.3
MHAE072-ES014 20 290 930 - 364 223 26 28 - - - 118
MHAE072-ES015 32 448 1145 - 452 270 31 35 - - - 237.5
