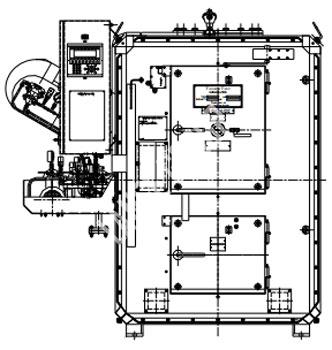

Marine Solid Waste Management System >> Marine Incinerator >> Dual-Function Incinerator >> Sludge Oil and Solid Waste TypeMarine Incinerator
 |
 |
| Product Name | Marine Incinerator |
| Product No. | MEPE402-SS004 |
| Waste Type | Solid Waste & Sludge Oil |
| Mounting Type | Vertically |
| Power Supply | 440V/60HZ 380V/50HZ |
| Calorie Capacity | Max.500000 kcal/h(580 KW) |
| Corresponding To | Max.65 l/h sludge oil (IMO defined sludge) |
| Solid Waste | Max.400 l/load |
| Combustion Chamber Temperature | Max.1200C° |
| Surface Temperature | 15C° above ambient temp. |
| Flue Gas Temperature | 350C° |
| Flue Gas Back Pressure | Max.150mm W.C. |
| Combustion Chamber Negative Pressure | from 10 to 35 mm W.C. |
| Max.Rated EL.Power | approx.15 KW |
