Wire Rope Blocks >> Vertical Directional Blocks
Product Name Vertical Directional Blocks
Product Material Steel
Product No. Wll Wire size Bearing Dimensions (mm) Weight

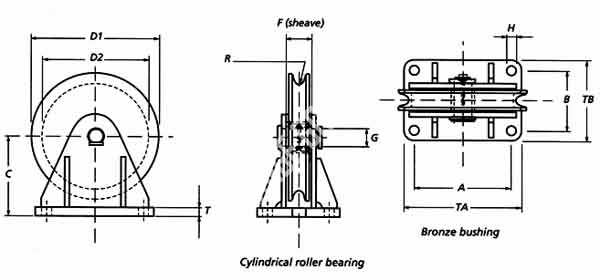

(t) up to (mm) D1 D2 A B C F G H T R TA TB (kg)
Bronze Bushing
MHAE074-VD001 1 10 Bronze 125 105 90 70 83 27 22 9 8 5.5 115 95 3
MHAE074-VD002 2 12 Bronze 150 120 115 85 95 40 30 11 10 6.5 140 110 5
MHAE074-VD003 3 14 Bronze 200 165 150 95 122 40 30 13.5 12 7.5 180 125 8
MHAE074-VD004 4 18 Bronze 250 210 190 120 155 45 35 17.5 15 9.5 230 160 17
MHAE074-VD005 6 20 Bronze 300 255 220 150 185 50 40 22 20 11 270 200 26
MHAE074-VD006 8 22 Bronze 350 305 270 160 220 50 45 26 25 12 330 220 41
MHAE074-VD007 10 24 Bronze 400 345 300 190 255 60 50 32 30 13 370 260 64
Ball or Cylindrical Roller bearing
MHAE074-VD008 1 10 2 x Ball 125 105 90 70 83 27 22 9 8 5.5 115 95 3
MHAE074-VD009 2 12 2 x Ball 150 120 115 85 95 40 30 11 10 6.5 140 110 5
MHAE074-VD010 3 14 2 x Ball 200 165 150 95 122 40 30 13.5 12 7.5 180 125 8
MHAE074-VD011 4 18 Straight 250 210 190 120 155 45 35 17.5 15 9.5 230 160 17
MHAE074-VD012 6 20 Straight 300 255 220 150 185 50 40 22 20 11 270 200 26
MHAE074-VD013 8 22 Straight 350 305 270 160 220 50 45 26 25 12 330 220 41
MHAE074-VD014 10 24 Straight 400 345 300 190 255 60 50 32 30 13 370 260 64

Note:
1. WLL= Working Load Limit
2. No test certificate possible.
3. Groove in sheave may be adjusted to other Wire rope diameters.
4. Minimum Ultimate Strength = 4 x WLL.
