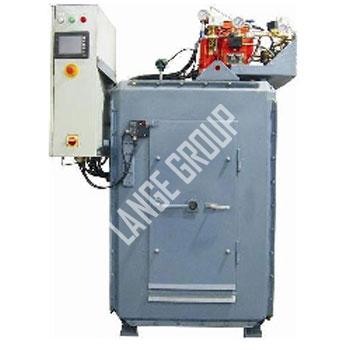

Marine Solid Waste Management System >> Marine Incinerator >> Dual-Function Incinerator >> Sludge Oil and Solid Waste TypeMarine Incinerator
 |
|
| Product Name | Marine Incinerator |
| Product No. | MEPE402-SS011 |
| Waste Type | Solid Waste & Sludge Oil |
| Mounting Type | Vertically |
| 1.Incinerator | |
| Calorie Capacity | 180,000 kcal/h (208KW) |
| 20 kg/h IMO sludge oil | |
| 14,4000Kcal/h solid waste | |
| Combustion Chamber Temperature | Max. 1180 |
| Working 850-1140 | |
| Flue Gas Temperature | Max.350 |
| Working 320-330 | |
| Surface Temperature | Less than 15 above ambient temperature |
| Electrical Power Consumption | 7KW |
| Negative Pressure | 10-35 mm WC |
| 2.Burner (On Incinerator unit) | |
| Calorie Capacity | 10-12 l/h one nozzles. 2.5 gph |
| Oil Pump | E4 Working press 16 bar Max 21 bar. |
| El. Motor | 380/440V,50/60Hz,0.37kW 2850/3360 rpm. |
| Ignition transformer | 220V/7,500V |
| Weight | 30 kg |
| 3. Flue Gas Fan | |
| Type | One stage centrifugal fan |
| Calorie Capacity | 3000 std. m3/hr |
| El. Motor | 380/440V,50/60Hz,3kW,2850/3444 rpm. |
| Weight | 110kg |
| Outline Dimension | 764x681x610 (L x W x H) |
| 4) Flue Gas Damper | |
| Type | A welded steel damper with actuator |
| Size | DN 200 |
| Actuator Motor | GBB 131.1E 220V 5VA (Drive force 20Nm. Travel time for 908 is 150 sec.) |
| Weight | 29kg |
| 5. Sludge Tank | |
| Volume | Net 500 liters |
| Flange Rating | PN 6 |
| Weight | 300 kg |
| 6. Sludge Circulation Pump | |
| Type | 2CWF11 |
| Calorie Capacity | 20 m3/h |
| El. Motor | 380/440V,50/60Hz,2.2/2.4 kW (2925/3450 rpm) |
| Weight | 42 kg |
| Connections | Suction: DN 65,Discharge:DN 40 |
| 7. Sludge Dosing Pump | |
| Type | A frequency controlled screw pump for quantity control of sludge. |
| El. Motor | 380/440V,50/60Hz,0.37kw,1500/1800rpm |
| Control Speed | 801500RPM |
| 8. Electrical Control Panel | |
| Enclosure Rating | IP 44 (Omron PLC and HMI control) |
| 9.Main Parts | |
| A.Combustion chamber with diesel oil burner,sludge burner,and electric control panel | |
| B.Flue gas fan 1 set | |
| C.Flue gas damper. 1 set | |
| D.Expansion joint 2 set | |
| E.Sludge tank with circulating pump and heater. 1 set | |
